The VisionF E-Cat 80 is a 79.7-foot electric catamaran designed by Marco Casali with naval architecture by Dr. Amedeo Migali. Twin hulls deliver stability across the beam of 35.8 feet, while the sleek, modern profile reflects efficiency-focused design. Two Danfoss electric motors rated at 482.76 horsepower power the yacht to a maximum speed of 12 knots, with bow and stern thrusters providing precise maneuvering in all conditions.
The layout accommodates up to 12 guests across six cabins, supplemented by dedicated crew quarters for four. Twelve heads service the accommodations, which feature semi-custom interiors and spacious finishes throughout. A customizable garage aft allows stowage and deployment of water toys, tenders, jet skis, and dive equipment, supporting active use and exploration.

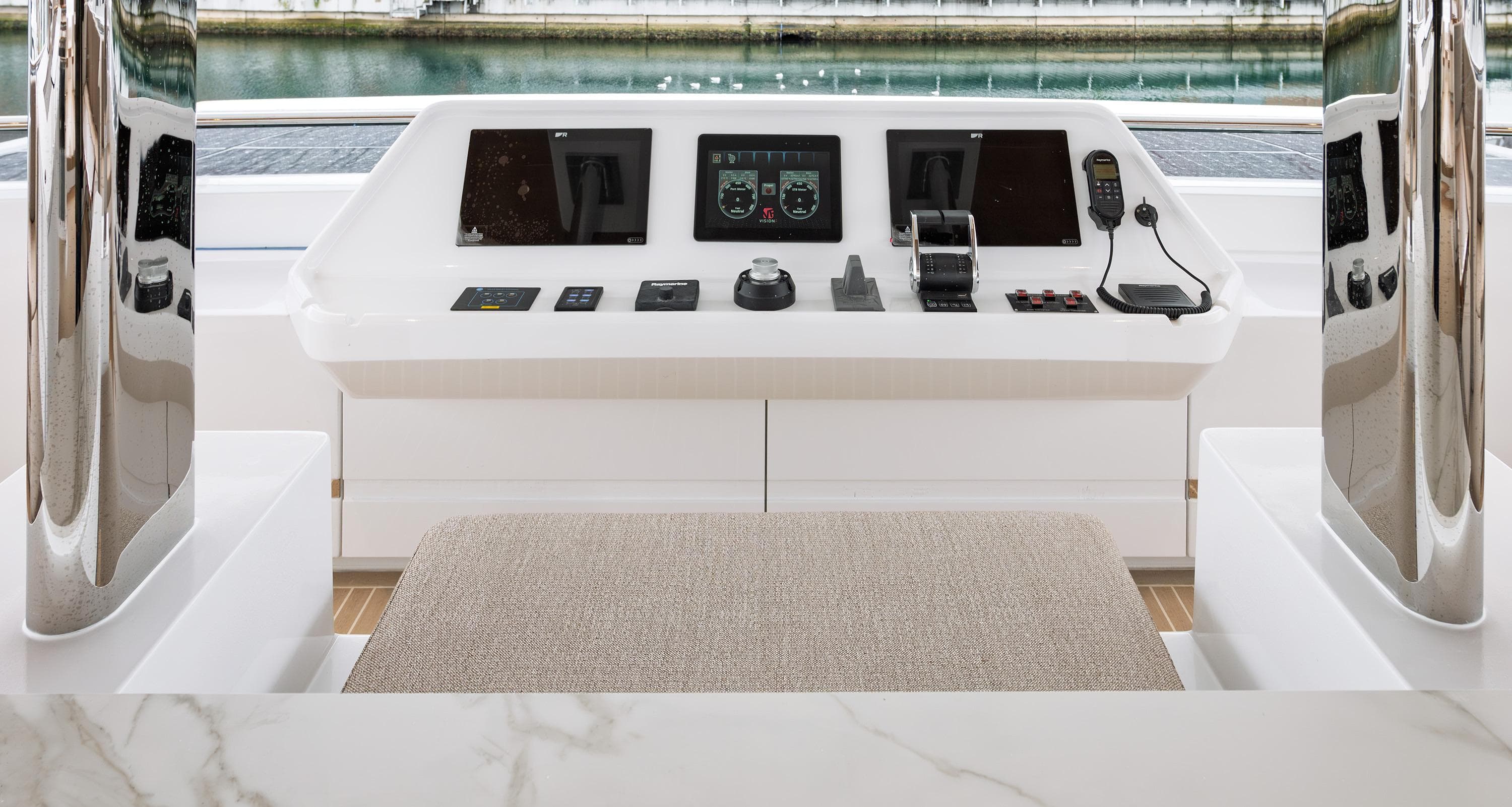

Power comes from an integrated energy system centered on 429 kW of battery capacity. Fifty-four solar panels generate up to 21.6 kW per hour, continuously charging the batteries for extended range under favorable conditions. Twin 150 kW generators and a 5-ton fuel tank provide backup power and enhanced performance during higher-speed passages. Joystick control simplifies helm operations, enabling confident boat handling in demanding situations.
Length
79.72 FT
Beam
35.83 FT
Draft
5.09 FT
Weight
209,439.32 LBS
Material
Fiberglass
Shape
Catamaran
Cabins
6
Heads
12
Crew Cabins
2
Engines
2
Engine Make
Danfoss
Engine Model
EM-PMI1540-T2000-700
Power
2 x NaN HP
Fuel
Electric
Cruising Speed
8.00 KTS
Max Speed
12.00 KTS
Range
1000.00 NM
Fuel
1,320.86 GAL
Water
264.17 GAL
