2026 MasterCraft XT24

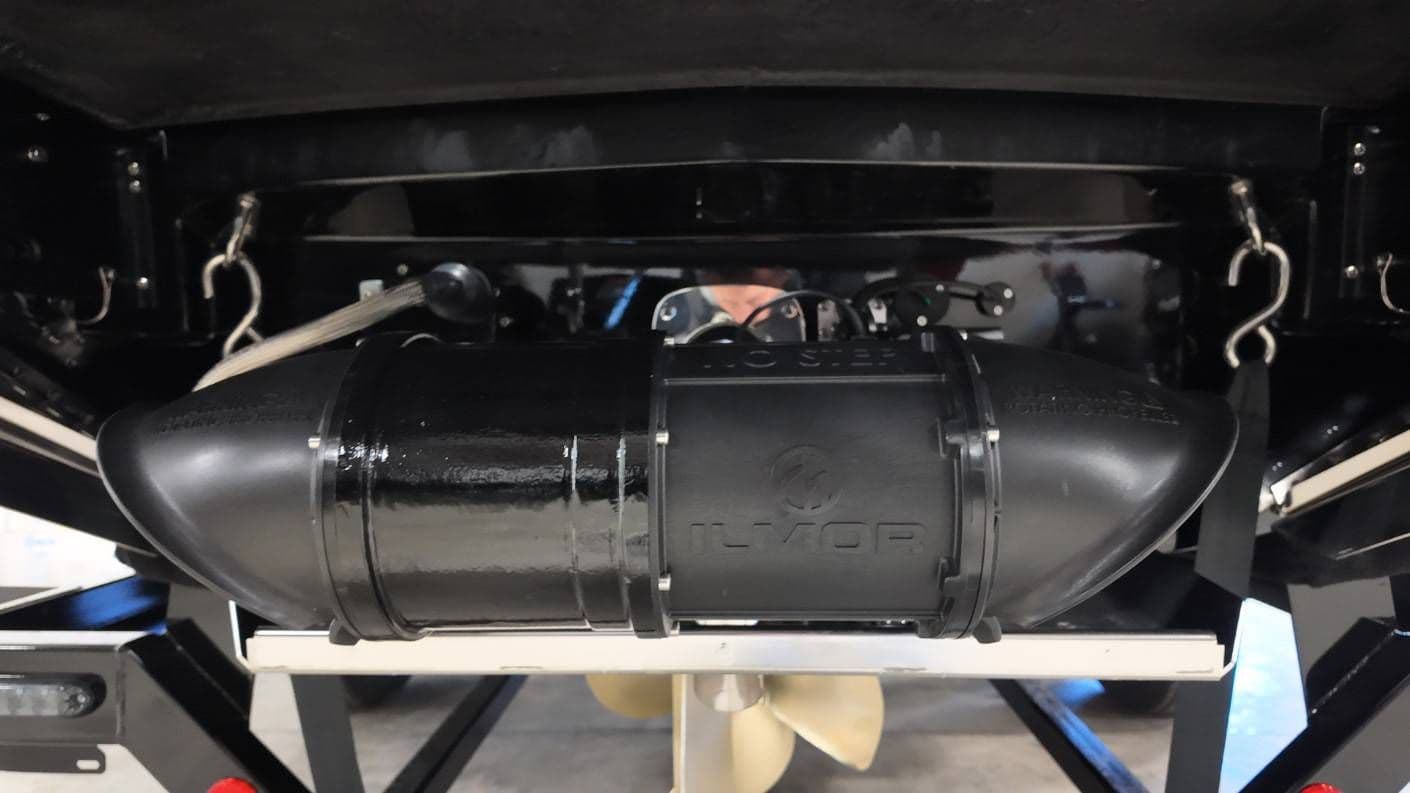

The 2026 MasterCraft XT24 is a 24-foot hand-laid fiberglass wake and surf boat built on the company's SurfStar wake-shaping platform. At 102 inches wide with a 30-inch draft and 5,550 pounds of hull weight, it seats 17 people or carries 2,500 pounds of payload. The fuel tank holds 92 gallons, providing range for extended outings. Power comes from an Ilmor 5.3L GDI HO V8 with a 2.1 transmission ratio tuned for surf speeds. The boat is equipped with a Triple Hard Tank Ballast system rated for 3,600 pounds of capacity and includes Fastfill technology for rapid ballast fill cycles.

The SurfStar wake-shaping system uses electric-over-hydraulic actuators with position sensing, side-to-side switching, and an attitude adjustment plate to produce tournament-grade push-the-rope surf waves on either side. Speed control is Zero Off-compatible and integrated into the display for AWSA-grade pull consistency. A PureFlow strut maintains drivetrain cleanliness, and tracking fins support wave stability. The ballast system fills quickly with the Fastfill option, minimizing time between sessions.

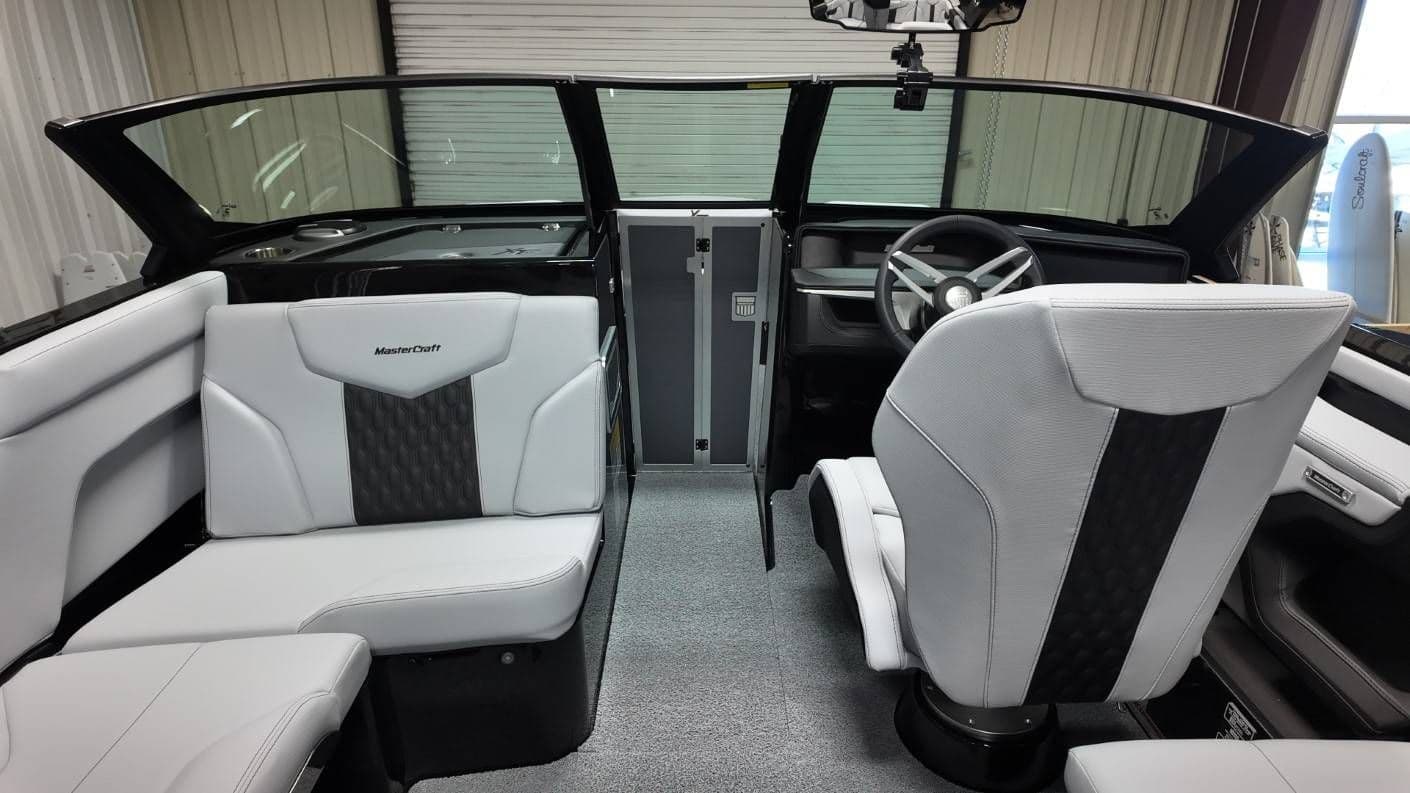

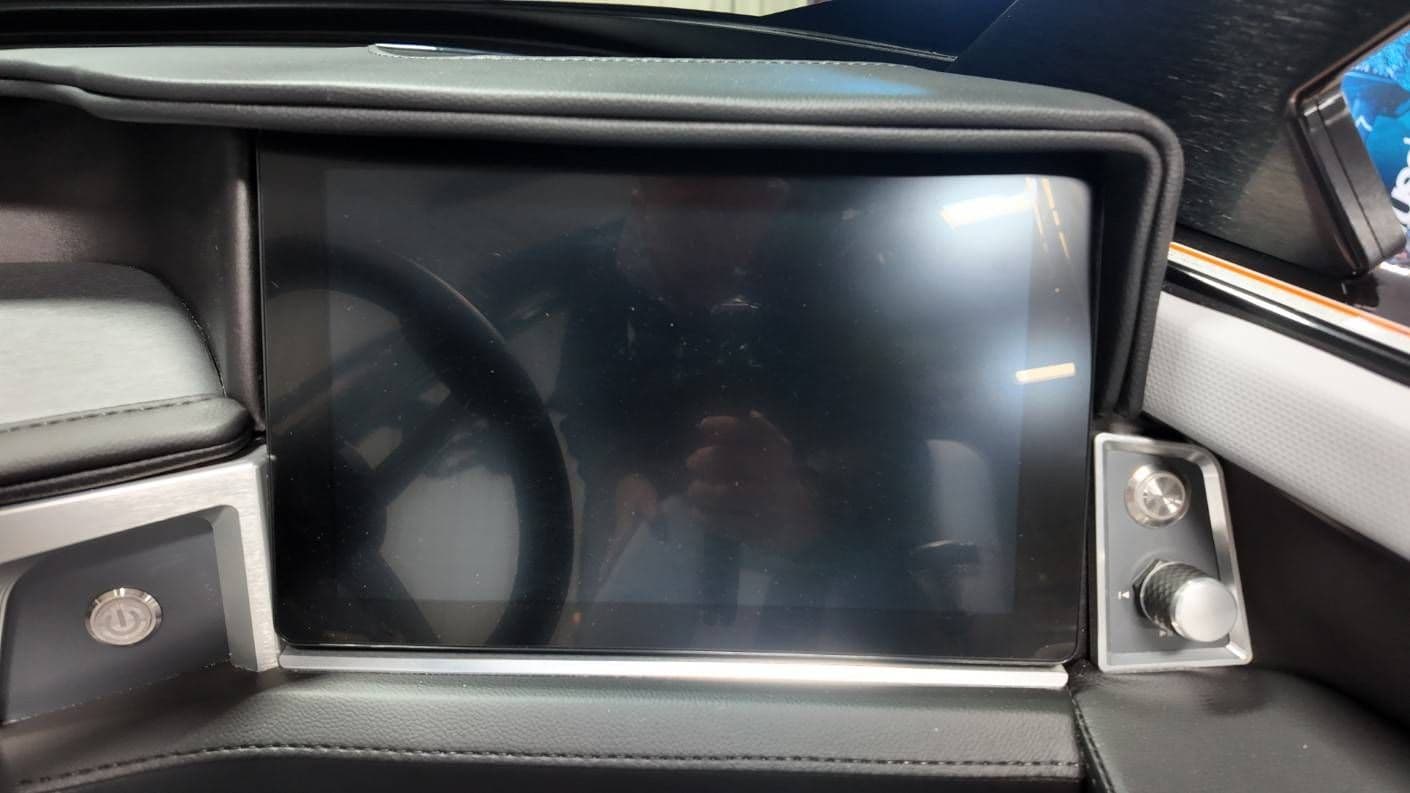

This particular XT24 is finished in a fully coordinated blackout theme: Flint Gray hull with Midnight Black hull bottom, deck, and fiberglass swim platform, paired with black accents throughout—Z8 tower, BTS wraparound windshield, board racks, helm details, and intake. Inside, Coolfeel Stealth Gray primary upholstery layers Bowmore Midnight Black accents with a Deckadence Gray floor for durability and grip. The cabin includes a 12-inch touchscreen XT Dash with integrated radio controls, rear-facing tower camera, and MyDrive encoder. The MasterCraft SoundStage audio system features four Meridian 8.5-inch speakers, two 7-inch speakers, two 10-inch subwoofers, an 8-channel amp, and DSP with zone control. Four Meridian M80 black tower cans with a 2-channel amp provide additional speaker output.

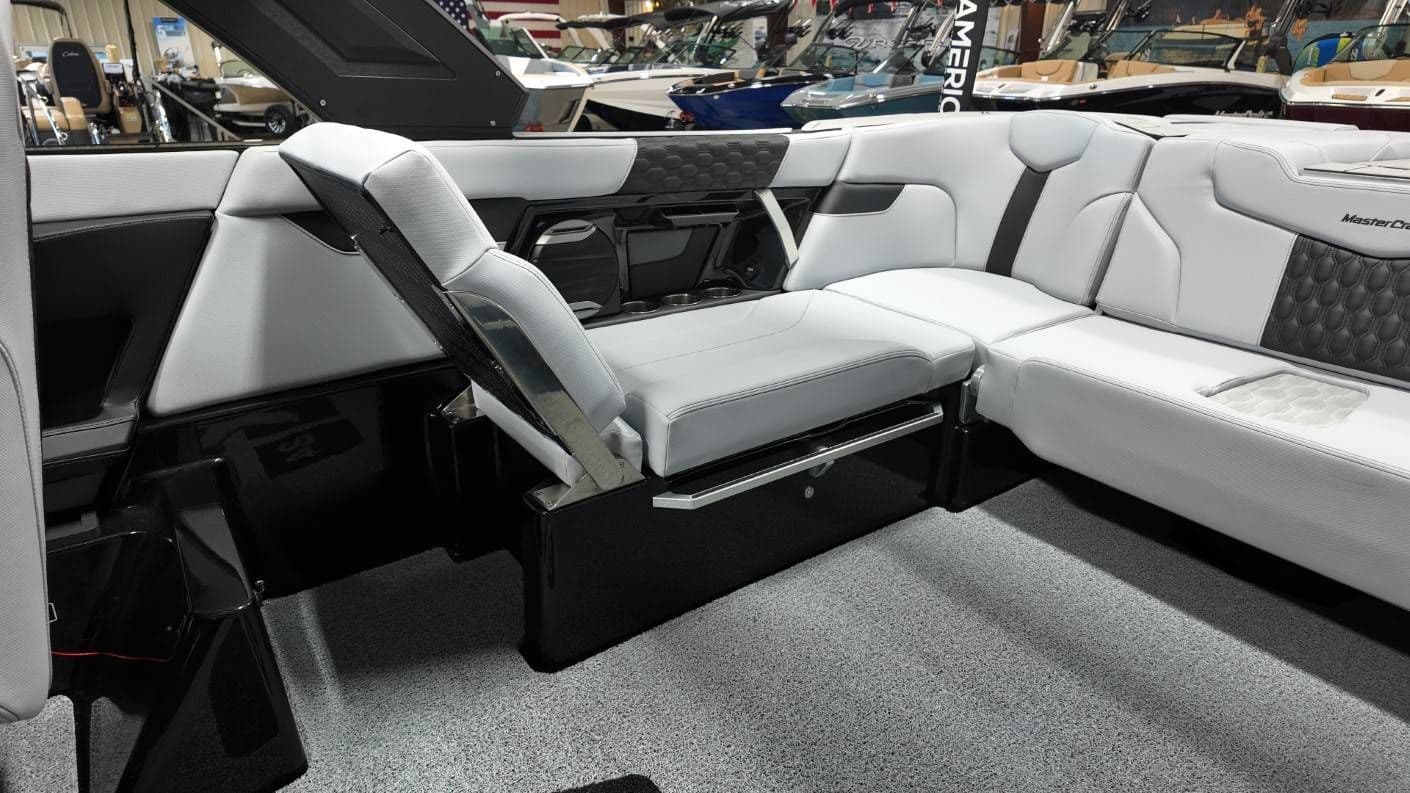

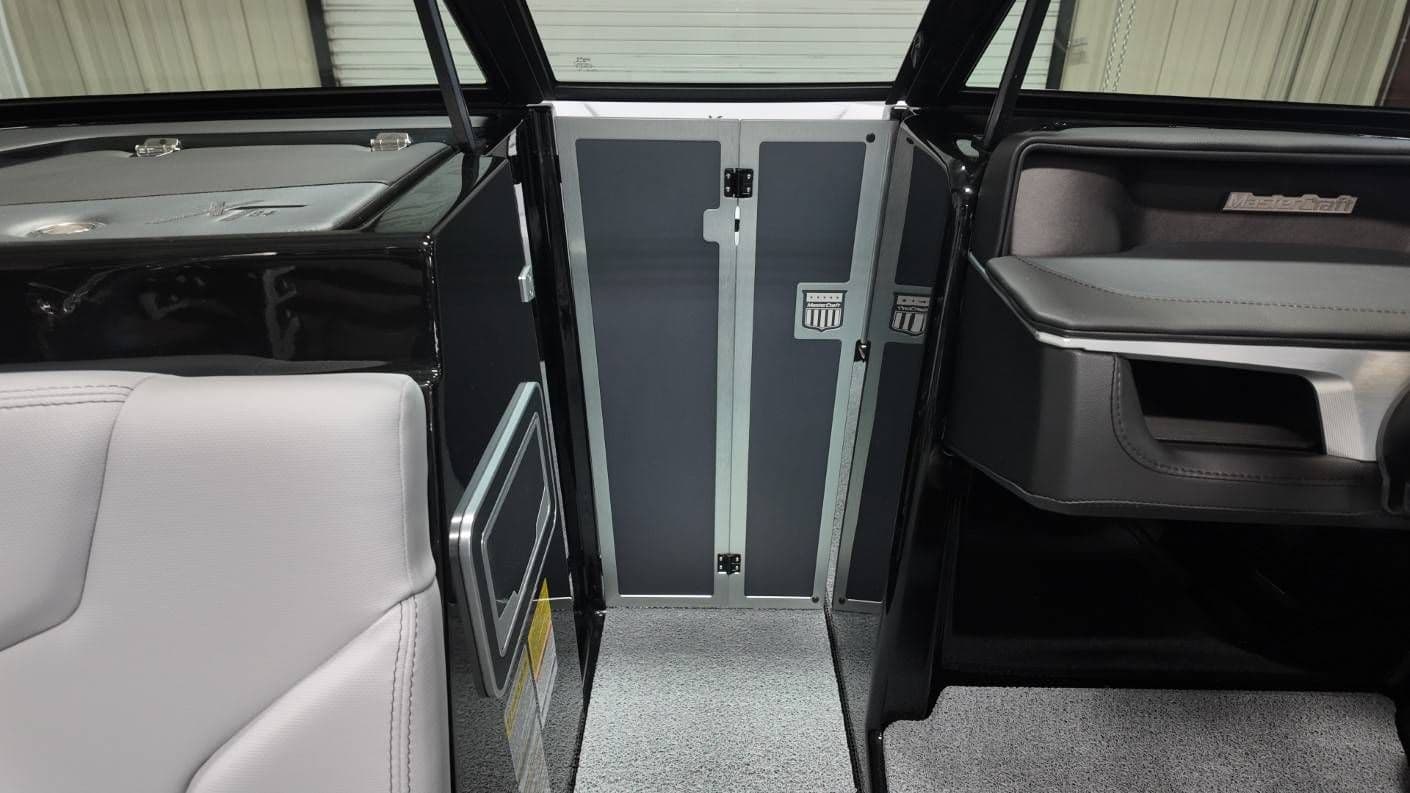

Equipment highlights include a Proportional Stern Thruster for joystick-controlled lateral thrust and precision docking, a Convertible Center with Sunpad Flip Seating, Activ-View Panoramic Plus mirror, Stainless Steel Fender Clips, Billet Walkthrough Door, Cockpit Wireless Charging Pads, Transom Scratch Protection, and a 110-volt onboard battery charger. Onboard MasterCraft Telematics provide real-time boat health and location data. The boat comes with a pop-up ski pylon, tower bimini cover, engine flush kit, depth finder, and fire extinguishers.
